PYROTEX 3F

PYROTEX 3F

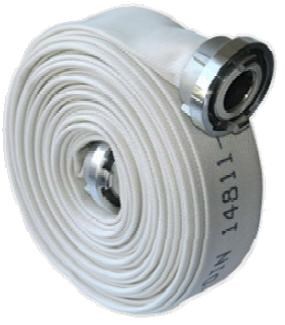

Product „PYROTEX 3F”

Standard jacket fire hose

Applicable for temperatures: 64
The hose is certified according to: 65

Jacket:

- 100% high tenacity synthetic yarn circular woven
- 3-ply warp threads

Lining:

- EPDM - rubber compound
- low friction loss
- ageing and ozon resistant, resistance to chemicals and see water

Applications:

- municipal and industrial fire brigades
- ships
- hydrants
- refineries
- military

Temperature:

- can be used at temperatures ranging from -30°C to +80°C

Approvals:

- DIN 14811
- Russian maritime register of shipping
- M.E.D.
- and other national standards

Standard colour:

white

Standard lengths:

15, 20, 30m (others on request)

Product sheet:

Technical specifications

Inner diameter (mm)Approximate weight (g/m)*Working pressure (MPa)*Test pressure (MPa)*Burst pressure (MPa)
38 224 1,6 2,4 7,5
42 252 1,6 2,4 6
45 270 1,6 2,4 6
52 312 1,6 2,4 6
65 365 1,6 2,4 6
70 417 1,6 2,4 6
