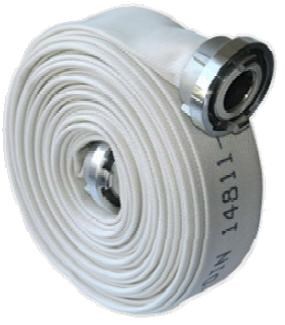

PYROTEX 3F
Product „PYROTEX 3F”
Standard jacket fire hose
Jacket:
- 100% high tenacity synthetic yarn circular woven
- 3-ply warp threads
Lining:
- EPDM - rubber compound
- low friction loss
- ageing and ozon resistant, resistance to chemicals and see water
Applications:
- municipal and industrial fire brigades
- ships
- hydrants
- refineries
- military
Temperature:
- can be used at temperatures ranging from -30°C to +80°C
Approvals:
- DIN 14811
- Russian maritime register of shipping
- M.E.D.
- and other national standards
Standard colour:
white
Standard lengths:
15, 20, 30m (others on request)
Product sheet:
Technical specifications
| Inner diameter (mm) | Approximate weight (g/m)* | Working pressure (MPa)* | Test pressure (MPa)* | Burst pressure (MPa) |
|---|---|---|---|---|
| 38 | 224 | 1,6 | 2,4 | 7,5 |
| 42 | 252 | 1,6 | 2,4 | 6 |
| 45 | 270 | 1,6 | 2,4 | 6 |
| 52 | 312 | 1,6 | 2,4 | 6 |
| 65 | 365 | 1,6 | 2,4 | 6 |
| 70 | 417 | 1,6 | 2,4 | 6 |
