PYROTEX EXTREME

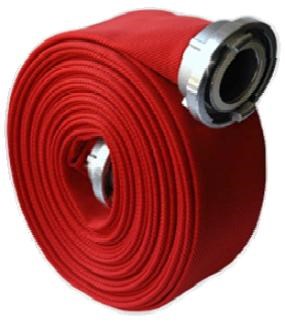

Product „PYROTEX EXTREME”
Coated jacket fire hose
Jacket:
- 100% high tenacity synthetic yarn circular woven
- 2-ply warp threads or 3-ply warp threads
Lining:
- EPDM - rubber compound
- low friction loss
- ageing and ozon resistant, resistance to chemicals and see water
External coating:
- synthetic coating
- very good abrasive resistance
- better resistance to oil and chemicals
Applications:
- municipal and industrial fire brigades
- ships
- refineries
- military
Temperature:
- can be used at temperatures ranging from -30°C till + 80°C
Approvals:
- M.E.D. Standard colour: red, signal yellow Standard lengths: 15,20,25,30,40m (others on request)
Product sheet:
Technical specifications
| Inner diameter (mm) | Approximate weight (g/m)* | Working pressure (MPa)* | Test pressure (MPa)* | Burst pressure (MPa) |
|---|---|---|---|---|
| 2F 25 | 136 | 1,6 | 2,4 | 6 |
| 2F 38 | 210 | 1,6 | 2,4 | 6 |
| 2F 42 | 230 | 1,6 | 2,4 | 6 |
| 2F 45 | 247 | 1,6 | 2,4 | 6 |
| 2F 52 | 300 | 1,6 | 2,4 | 6 |
| 2F 64 | 348 | 1,6 | 2,4 | 6 |
